Long Term Storage of Ships During COVID-19 Shutdown
Now, more than ever, companies need to protect their capital assets and WIP-cycle components in this time of uncertainty and unplanned shutdowns. Due to the impact of COVID-19, society must embrace the adage, “Hope for the best. Plan for the worst.” Even after this is over, it will take time for the supply and demand sides of the market to synchronize. To ease the process, equipment needs to be protected in such a manner that it can be put back into commission with minimal effort to meet market demand.
Cortec® Corp. is working hard during this crisis to offer help and support across all industry sectors, putting its technical expertise at the disposal of its customers to assist them in the following areas:
- Preservation of laid up vessels
- Preservation of material in inventory
As manufacturing facilities are shutting down and going into a state of forced layup for an indefinite period, keeping these assets corrosion-free is essential to ensuring they can be reinstated and operational as quickly and cost-effectively as possible. Corrosion is a major problem for idle equipment and assets, especially in the presence of moist, salt-laden air or fluctuating humidity that forms condensation on electrical systems, rotating equipment, hydraulics, bolts, valves, and motors, to name a few components. Corrosion results in
- Premature equipment failure
- Unnecessary and non-budgeted repair and replacement costs
- Costly delays in reinstatement of vehicles, plants, and equipment
How Can We Combat This?
Vapor phase Corrosion Inhibitor Technology is designed to protect assets and equipment during shutdown and storage. It is based on the formation of a molecular barrier that protects ferrous and non-ferrous metal surfaces from oxygen and electrolytes, thus breaking the corrosion cycle. Cortec® VpCI® materials provide total corrosion protection to equipment of all types, from small electronic components to large oil and gas module piping internals.

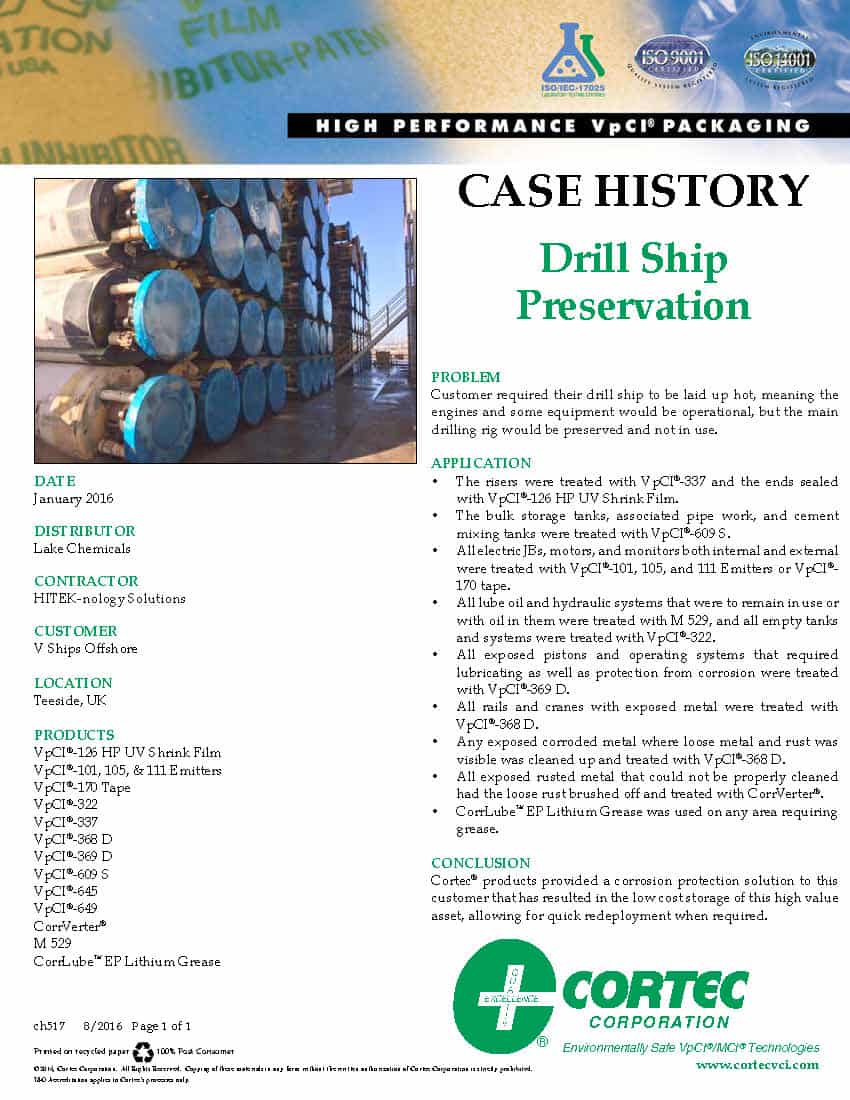

Preservation Various Types of Ships
| Product | Dosage/Volume Protected |
|---|---|
| VpCI®-101 | 1 ft3 (.028 m3) |
| VpCI®-105 | 5 ft3 (.141 m3) |
| VpCI®-111 | 10 ft3 (.311 m3) |
| VpCI®-308 Pouch | 35ft3 (1 m3) |
| VpCI®-415 | 10% solution by volume |
| M-531 | .5 oz/ft3 (.52 l/m3) when fogged and 5% solution by volume when added to oil |
| VpCI®-337 | .5 oz/ft3 (.52 l/m3) |
| VpCI®-707 | .2% by volume |
| M-640 L | 3% by volume |
| VpCI®-649 | .5% by volume |
| VpCI®-645 | 75% by volume |
| VpCI®-609 | .5 oz./ft3 (.52 l/m3) |
| Boiler Dragon™ | .5 oz./ft3 (.52 l/m3) |
| Boiler Lizard® | 1 tube protects 1000 gallons (134 ft3, 3.8 m3) |
| Boiler Gecko™ | .5 oz./ft3 (.52 l/m3) |
Preservation Guideline: (NOTE: Compatibility of all products added to systems should be verified)

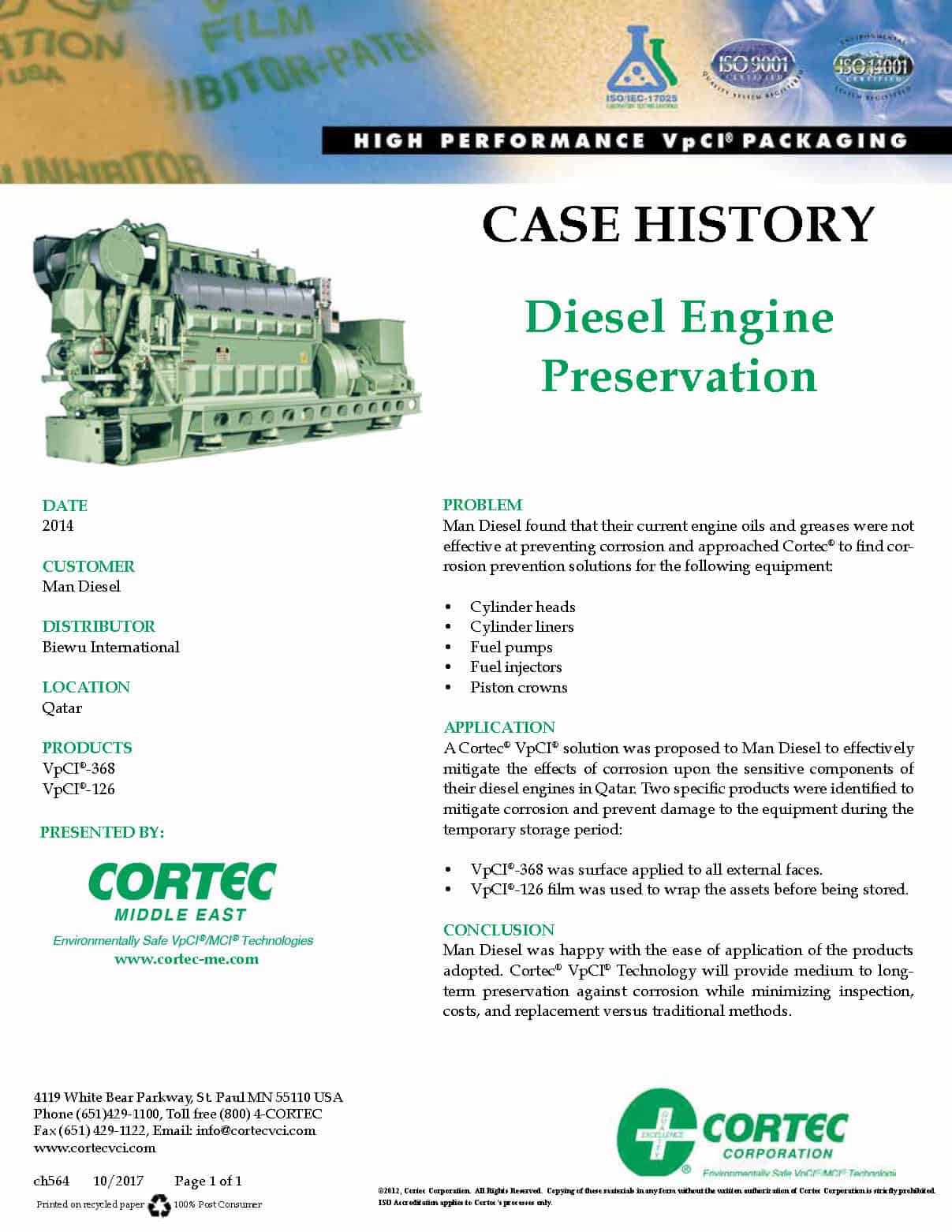

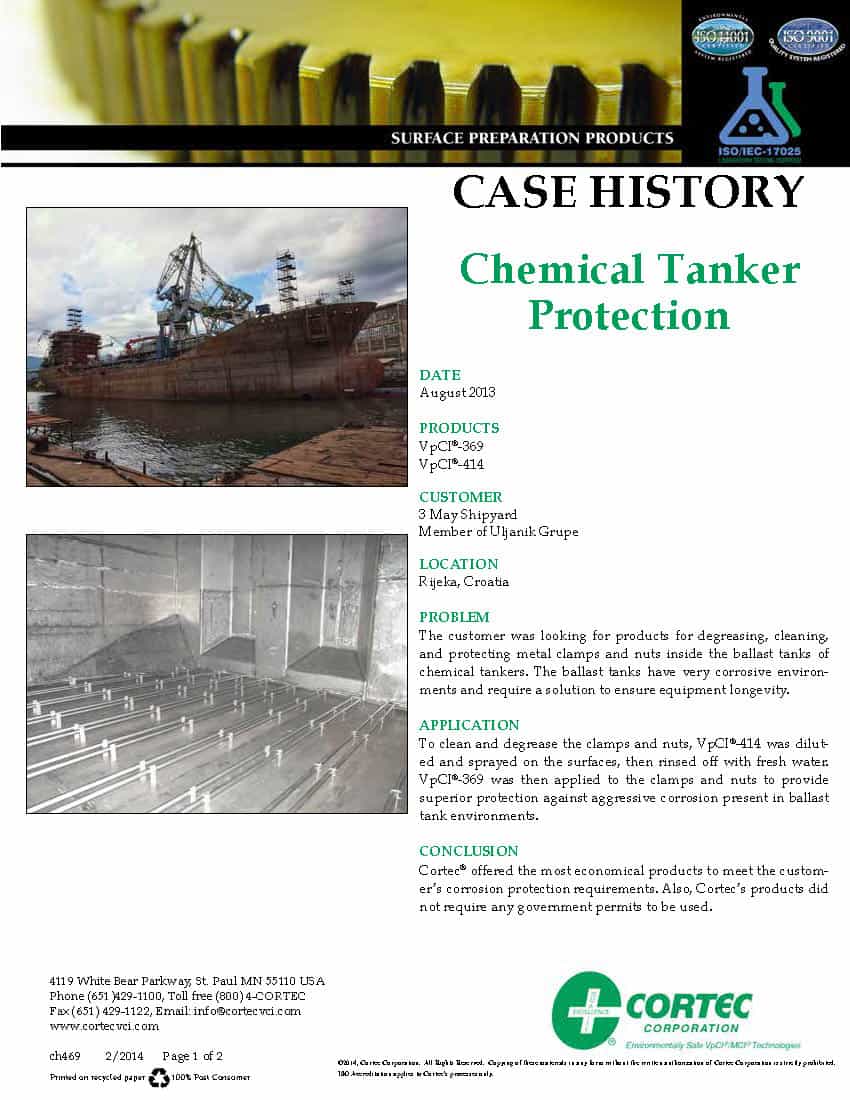

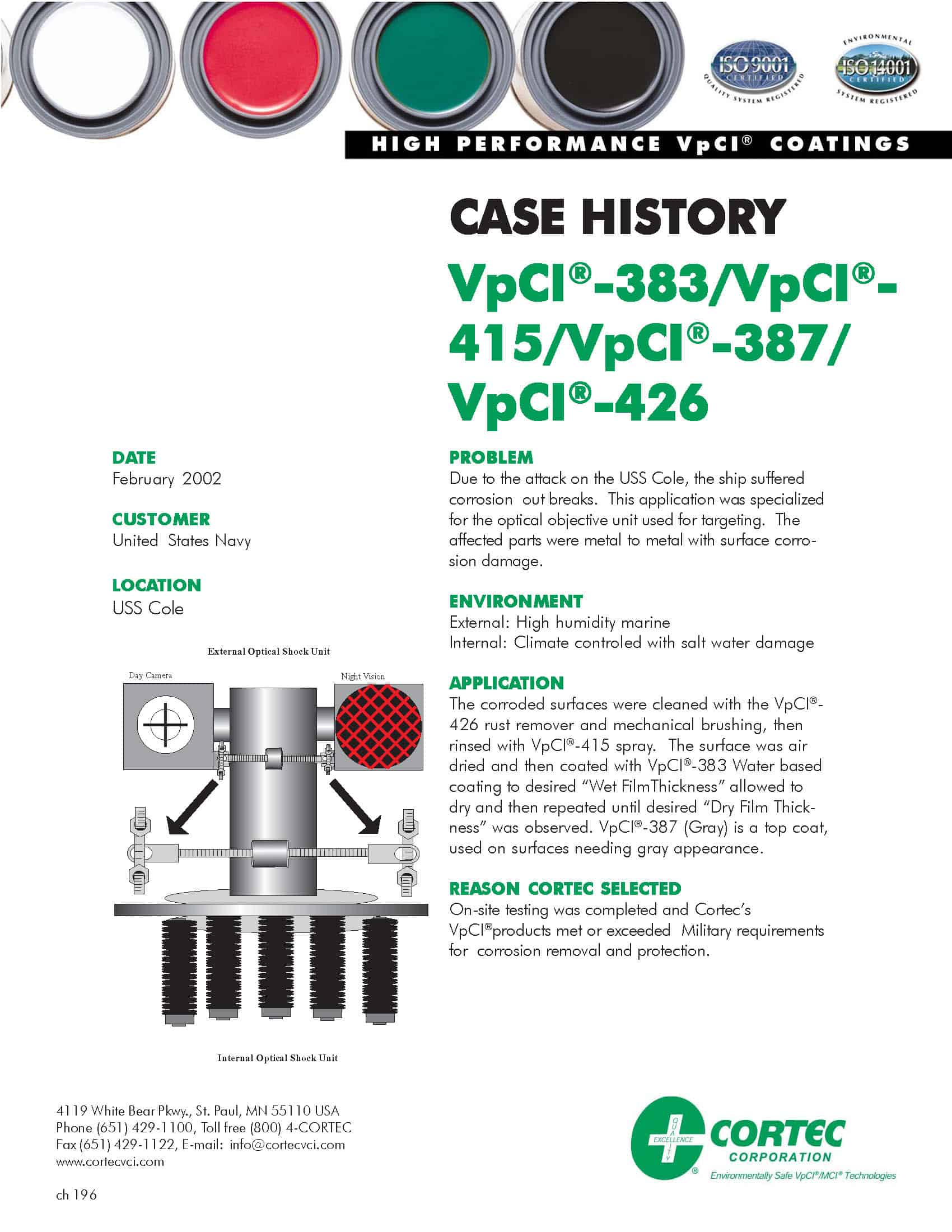

| Location | Product | Procedure |
|---|---|---|
| Guard rails | VpCI®-423, VpCI®-415, EcoShield® 386 | Remove rust with VpCI®-423, Wash with VpCI®-415, Coat with EcoShield® 386 clear or color of choice |
| Decks, bulkheads & hull | VpCI®-395, VpCI®-384, VpCI®-423, VpCI®-415 | Clean all surfaces for dirt and debris from surface, remove any rust with VpCI®-423 and wash/neutralize with VpCI®-415. Apply two coats of VpCI®-395 and topcoat with VpCI®-384 |
| Deck plates/grating | VpCI®-423, VpCI®-415, VpCI®-396, Corrverter® | Clean all surfaces for dirt and debris from surface, remove any rust with VpCI®-423 and wash/neutralize with VpCI®-415. OPTION: Instead of using VpCI®-423 you can apply CorrVerter® to the rust which turns the hematite to magnetite which can be painted. Paint with VpCI-396 |
| Electronics and electrical controls | ElectriCorr® VpCI®-239, VpCI®-101, VpCI®-105, VpCI®-111, VpCI®-308 pouch | Spray all contacts with ElectriCorr® VpCI®-239, Place the appropriate size emitter into cabinet/panel. VpCI®-101, VpCI®-105, VpCI®-111 and VpCI®-308 pouch. |
| Motors & Generators | ElectriCorr® VpCI®-239, VpCI®-105, VpCI®-111, VpCI®-308 pouch, M-531 | For open frame motors and generators fog the core with ElectriCorr® VpCI®-239, Place the appropriate size emitter into motor junction boxes. Protect oil system with M-531 |
| Pumps & Compressors | VpCI®-337, M-531 | Fog VpC®I-337 into the interior of all pumps, compressors and associated piping except for oil systems. For systems circulating oil, fog the internals with M-531. Treat all equipment lubrication systems with M-531 |
| Diesel Engines | M-640L, M-531, VpCI®-707, VpCI®-371, VpCI®-415, VpCI®- 423 | Clean external surfaces with VpCI®-415, Remove any rust with VpCI®-423, wash/neutralize are with VpCI®-415, Coat high temperature sections with VpCI®-371 aluminum, Add M-640L to cooling system if closed loop, Add VpCI®-707 to fuel tank and fog into turbocharger intake, Add M-531 to engine oil |
| Gearbox | VpCI®-415, VpCI®-423, M-531 | Clean external surfaces with VpCI®-415, remove any rust with VpCIv-423, Fog or add M-531 to the lubricating oil |
| Valves | VpCI® Super Penetrant, VpCI®-369 D | Spray all valve stem bushings and packing body nuts with VpCI® Super Penetrant. Spray valve steam with VpCI®-369 D |
| Oil systems | M-531 | Add M-531 to all lubricating oil systems |
| Cooling water systems (closed loop) | VpCI®-649, VpCI®-645 | Add VpCI®-649 to freshwater systems and VpCI®-645 to saltwater systems |
| Toilets and holding tanks | ECO-SEPT™, PORTA-TREAT™ 10X | Add to toilets and holding tanks |
| Ballast tanks | ECO-CLEAN-ALL™ | For general cleaning of any hard surfaces that do not come in direct contact with food. |
| Void Spaces (Double wall hulls, rudder cavities, etc.) | VpCI®-609, VpCI®-308 | Fog into ferrous only void spaces. Fog VpCI®-308 into multi-metal spaces |
| Storage tanks | M-531, VpCI®-707 | Add M-531 to oil storage tanks and VpCI®-707 to fuel storage tanks |
| Hoist and Wenches | VpCI®-369 D, EcoLine® Wire Rope Grease | Spray with VpCI®-369 D or coat with EcoLine® Wire Rope Grease |
| Hot water boilers (non-potable) | VpCI®-649, Boiler Dragon™, Boiler Gecko™, Boiler Lizard® | Wet layup: Add VpCI®-649 and circulate through system; then drain or leave full. Dry Layup: Boiler Lizard® in drained water side. Option to fog Boiler Dragon™/Boiler Gecko™ into water side; fog Boiler Dragon™/Boiler Gecko™ into the fireside. |
| Boilers (closed loop, non-potable systems) | Boiler Dragon™, Boiler Lizard®, Boiler Gecko™, M640L | For wet layup, add M-640 L to feed/condensate and circulate. For dry layup, fog Boiler Dragon™ or Boiler Gecko™ into both fire side and water side. Boiler Lizard® can also be used to protect the drained water side. |
| Steam Lines | Boiler Dragon™ | Fog Boiler Dragon™ into all steam lines |
| Steam Turbines | VpCI®-337, M-531, VpCI®-415, VpCI®-423 | Clean external surfaces with VpCI®-415, Remove any rust with VpCI®-423, Fog steam flow path with VpCI®-337 |
| Gas Turbines | VpCI®-337, M-531, VpCI®-415, VpCI®-423, VpCI® Super Penetrant | Clean external surfaces with VpCI®-415, Remove any rust with VpCI®- 423, Fog steam flow path with VpCI®-337, Spray all external linkages with VpCI® Super Penetrant |
| Insulation | VpCI®-658 | Inject into insulation to prevent/control corrosion under insulation |
| Exposed machined surfaces topside and below decks including aluminum and stainless | VpCI®-423, VpCI®-415, VpCI®-391 clear | Remove any rust with VpCI®-423, wash/neutralize with 10% solution VpCI®-415 and coat with VpCI®-391 |
Products approved/used by OEMs:
Caterpillar – VpCI®-377, VpCI®-391
GE Marine Engines– VpCI®-377,
GE Gas Turbines – M-531, VpCI®-337 GE, VpCI®-391, VpCI® Super Penetrant, VpCI®-377, VpCI®-386 HT
Wartsila – VpCI® film, BioPad®, VpCI®-322, VpCI®-649, VpCI®-645, VpCI® powders, VpCI® cleaners
Rolls Royce – VpCI®-126 bags
Fincantieri shipyard – VpCI®-609, VpCI®-645
Reference Documents:
Marine – Shipbuilding Preservation Brochure https://www.cortecvci.com/Publications/Brochures/Marine-Shipbuilding-Brochure.pdf
Shipbuilding Presentation:
https://corteccorporation-my.sharepoint.com/:b:/g/personal/jholden_cortecvci_com/ET_X3irDeAZOhFgArEexof4BY6iEZwCysRmANgduXcjH8w?e=yftzBA
Certification
| Product | Performance Guideline | QPL | Commercial Equivalent | NSA/NATO/GSA |
|---|---|---|---|---|
| Cor-Pak® 1-MUL Pouch | MIL I-22110C | Yes | NSN 6850-01-470-2737 GSA 8030-01-208-1769 |
|
| Cor-Pak® Tablets* | MIL I-22110C | |||
| CorShield® Packaging Fabric | MIL P-58102 | Yes | ||
| Desicorr® | MIL-D-3464E (1) | |||
| Desicorr® VpCI® | MIL-D-3464E (1) MIL I-22110C | |||
| EcoShield® | MIL P-58102 | Yes | ||
| EcoWeave® | MIL PRF-121G | Yes | ||
| MilCorr® Shrink Film | MIL PRF-121G | Yes | ||
| VpCI®-101 | NSN 6850-01-338-1392 | |||
| VpCI®-105 | MIL I-22110C | Yes | NSN 6850-01-406-2060 | |
| VpCI®-110* | MIL I-22110C | Yes | NSN 6850-01-456-2971 | |
| VpCI®-111 | MIL I-22110C | Yes | NSN 6850-01-408-9025 | |
| VpCI®-125 | ||||
| VpCI®-126 Blue | MIL PRF-22019E (1) | Yes | ||
| VpCI®-126 Shrink | MIL PRF-22019E (1) | QPL 22019-21 | ||
| VpCI®-130 Series | MIL-PRF-26514G (T 3) (CLS II) (A) | |||
| VpCI®-133 | MIL-PRF-26514G (T 3(CLS II) (A) | NSN 6850-01-426-3539 | ||
| VpCI®-144 | MIL PRF-3420G | Yes | ||
| VpCI®-146* | MIL PRF-3420G | Yes | ||
| VpCI®-150/170 | MIL-PRF-26514G (T 3) (CLS II) (A) | NSN 8030-01-208-1769 NATO 8030-00-244-1299 |
||
| ElectriCorr® VpCI®-238 | NSN 6850-01-413-9361 | |||
| VpCI®-307 | MIL I-22110C | |||
| VpCI®-308 | MIL I-22110C | |||
| VpCI®-322 | MIL PRF-46002C | Yes | ||
| VpCI®-323 | MIL PRF-46002C MIL I-85062 (Additives to Oils) | Yes Yes | ||
| VpCI®-325 | MIL PRF-16173E (3) | NSN 6850-01-517-1652 | ||
| VpCI®-326 | MIL PRF-46002C MIL I-85062 (Additives to Oil) | Yes Yes | NSN 6850-01-470-3358 NATO 6850-66-132-6100 |
|
| VpCI®-327 | MIL C-15074E | Yes | ||
| VpCI®-329 | MIL PRF-46002(1) MIL I-85062 (Additives to Oil) | Yes Yes | NSN 6850-01-470-3359 NATO 6850-66-132-6100 |
|
| VpCI®-347 | NATO 6850-66-132-6101 NATO 6850-66-132-6102 NSN 6850-01-470-2740 |
|||
| VpCI®-368 | MIL PRF-16173E (Grade 1) | Yes | NSN 8030-00-062-6950 NSN 8030-00-231-2345 NSN 8030-00-244-1300 NSN 8030-01-470-2601 NATO 6850-66-132-5848 NATO 6850-66-132-6099 |
|
| VpCI®-368M | MIL PRF-16173E (Grade 1) | QPL 4620-1535(1) | NSN 8030-01-430-4898 | |
| VpCI®-369 | MIL PRF-16173E (Grade 2) | Yes | NSN 8030-00-244-1297 NSN 8030-00-244-1295 NSN 8030-01-149-1731 |
|
| VpCI®-369M | MIL PRF-16173E (Grade 2) | QPL 4620-1535(2) | NSN 8030-00-244-1298 NSN 8030-01-149-1731 |
|
| VpCI®-373 | NSN 8010-01-470-2739 | |||
| VpCI®-377 | NSN 8010-01-502-9727 | |||
| VpCI®-379 | NSN 8030-01-481-8928 | |||
| VpCI®-386 Water Based Acrylic | NSN 8030-01-481-8897 | |||
| VpCI®-388 | NSN 8030-01-481-8898 | |||
| VpCI®-415 | MIL PRF-87937D Type IV BOEING D6-17487 Rev P Douglas CSD-1 AMS-1526B | QPL AFPET/PTPT 09-004 Pending Pending Pending | ||
| VpCI®-422 | NSN 6850-01-482-4534 | |||
| VpCI®-423 | NSN 6850-01-482-4536 | |||
| VpCI®-426 Rust Remover | NSN 6850-01-477-4155 | |||
| VpCI®-560***Powder | MIL-I-22110C | Yes | NSN 6850-01-470-2738 |
